Product Description

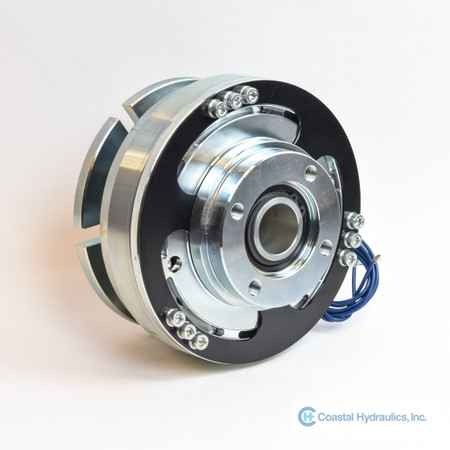

This 24 Volt Ogura Electr0-magnetic Clutch is designed for the Gresen TC pump.
Electric Clutch Specifications:
- Power: 72 Watts
- Max RPM: 3600
- Max Static Torque: 200 pound-feet
- Volts: 24
- For Pump Shaft Size: 1 inch Shaft with 1/4 inch Keyway
Mounting Bracket 13219 (sold separately)
Note:
Drive flange bolt pattern and pilot diameter on clutch are dimensional to correlate with ""Spicer"" type 1280-1310 series drive shaft flange connections. Proper drive shaft selection is important. Consult with drive shaft manufacturers specifications for each specific application requirement. Drive shaft alignment must be within 3 degrees.
Important installation Step: Clutches require a short burnishing period to generate the rated torque. To burnish, install the clutch and run at 1000 to 1200 RPM. Cycle on/off up to four (4) times per minute so that the surfaces can mate together. In most applications 30-50 cycles are required to burnish.
