Product Description

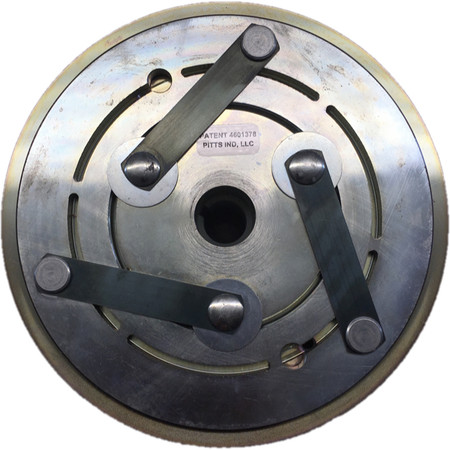

Use this belt driven Pitts Clutch for your hydraulic pump drive control. This heavy duty compact electro-magnetic 12 Volt DC clutch with Power Band ""B"" Belt will give your operator control over the hydraulic system.
Clutch Specifications:
- Power: 60 Watts
- Max RPM: 3600
- Max Static Torque: 150 pound-feet
- For Pump Shaft Size: 3/4 inch with 3/16 inch Keyway
- Pump Mount: ""A"" 2 Bolts
Mounting Bracket 13195 (sold separately)
Important Installation Step: clutches require a short burnishing period to generate the rate torque. To burnish, install the clutch and run at 1000 to 1200 RPM. Cycle on/off at the rate of 5 seconds on - 5 seconds off for a total of 25 cycles.
Pitts Clutch Catalog - Diagram for this clutch is on page 16.
