Product Description

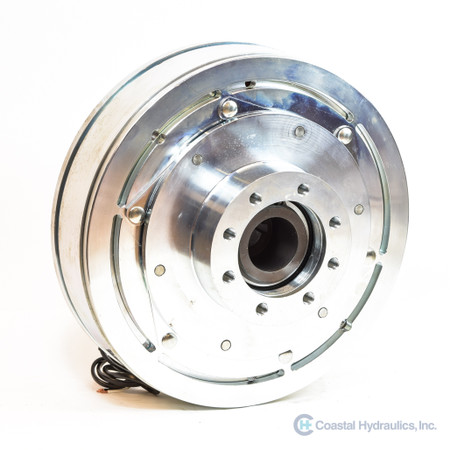

This shaft driven Electro-magnetic Clutch will give your operator control over your hydraulic system.
Clutch Specifications:
- Power: 84 Watts
- Max RPM: 3000
- Max Static Torque: 1500 pound-feet
Mounting Bracket 14219 (sold separately)
Pitts Clutch Catalog - Diagram for this clutch on page 37.
Drive flange bolt pattern and pilot diameter on clutch are dimensioned to correlate with ""Spicer"" type 1550 series drive shaft flange connections.
Proper drive shaft selection is important. Consult with draft shaft manufacturers specifications for each specific application requirement. Drive shaft alignment must be within 3 degrees.
Important installation step: Clutches require a short burnishing period to generate the rated torque. To burnish, install the clutch and run at 1000 to 1200 RPM. Cycle on/off at the rate of 5 seconds on - 5 seconds off for a total of 25 cycles.
